Battery Type
Lead-acid / Lithium / User-defined
Battery Voltage Range
20VDC-30.5VDC
Communication Interface
BMS(485/CAN), Dry-contact, WiFi Module
Efficiency
Max. 92% (Batt. Mode)
Frequency Range
50 / 60Hz ±10Hz (Auto sensing)
Humidity
5% to 95% Relative Humidity (Non-condensing)
Max. AC Charging Current
100A
Max. PV Input Current
18A
Max. PV Input Power
5000W
Max. PV Open Circuit Voltage
500VDC
Model

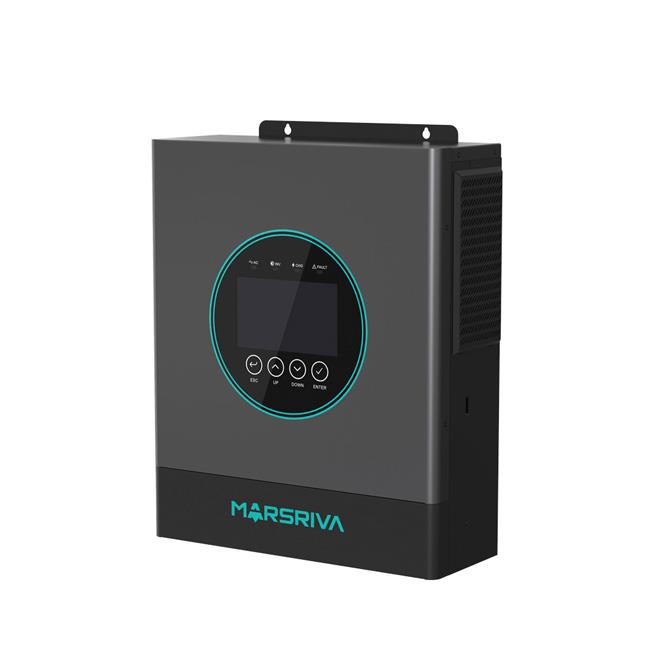

MARSRIVA MR-SPF3.6K-LP1-TL20E
MPPT Voltage Range
40 – 450VDC (Min. 60VDC without battery connected)
Net Weight (kg)
6.4
Nominal Battery Voltage
24VDC
Nominal Output Frequency
50 / 60Hz ± 0.1% (Batt. Mode)
Nominal Output Voltage
208 / 220 / 230 / 240VAC ± 5%
Nominal Voltage
208 / 220 / 230 / 240VAC
OPERATING TEMPERATURE
-10°C to 50°C
OUTPUT POWER
3.6kW
Rated power
3.6kVA / 3.6kW
Solar Charger Type
MPPT
Storage Temperature
-15°C to 60°C
Surge Power
2 times of rated power
Transfer Time
10ms (UPS/APP Mode); 20ms (GEN Mode)
Voltage Range
170 – 264VAC (UPS Mode); 90 – 280VAC (APP/GEN Mode)
