DTMF Methods
DTMF Method In-audio, RFC2833 and/or SIP INFO
QoS
QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, DiffServ, MPLS)
ابعاد
Dimension and Weight Dimensions: 100mm x 100mm x 29.5mm Weight: 102 g
پروتکل ها و استانداردها
Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
پورتهای دستگاه

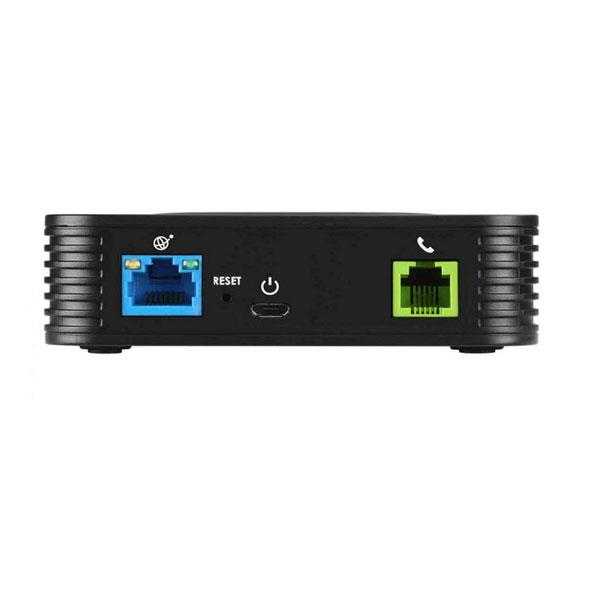

Telephone Interfaces One (1) FXS port / Network Interfaces One (1) 10/100Mbps auto-sensing ethernet port (RJ45) /Factory Reset Button Yes
تعداد پورت FXS
One (1) FXS port
چراغهای نشان دهنده وضعیت دستگاه
LED Indicators POWER, INTERNET, PHONE
دما و رطوبت
Operational: 32º – 104ºF or 0º – 40ºC Storage: 14º – 140ºF or -10º – 60ºC Humidity: 10 – 90% Non-condensing
قابلیت های امنیتی
Media SRTP /Control TLS/SIPS/HTTPS /Management Syslog support, SSH, remote management using web browser
قابلیت های تلفنی
Telephone Interfaces One (1) FXS port
قابلیت های کلیدی دستگاه

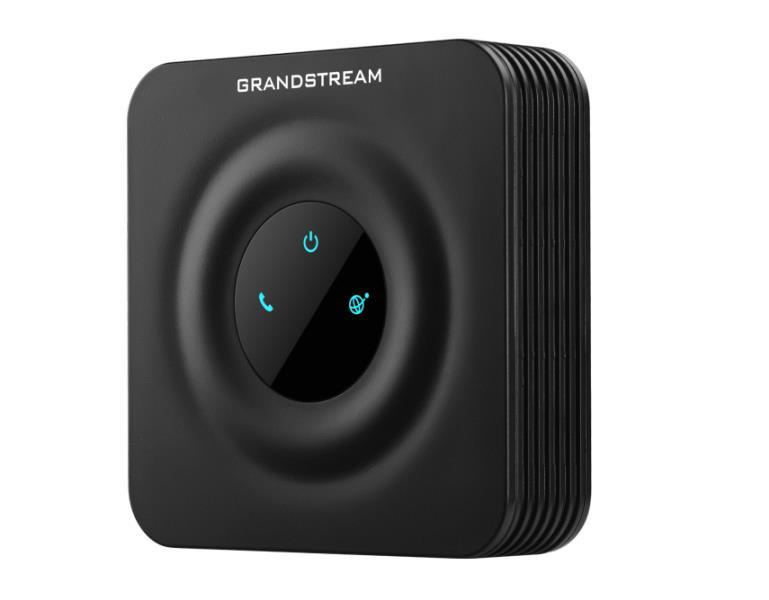

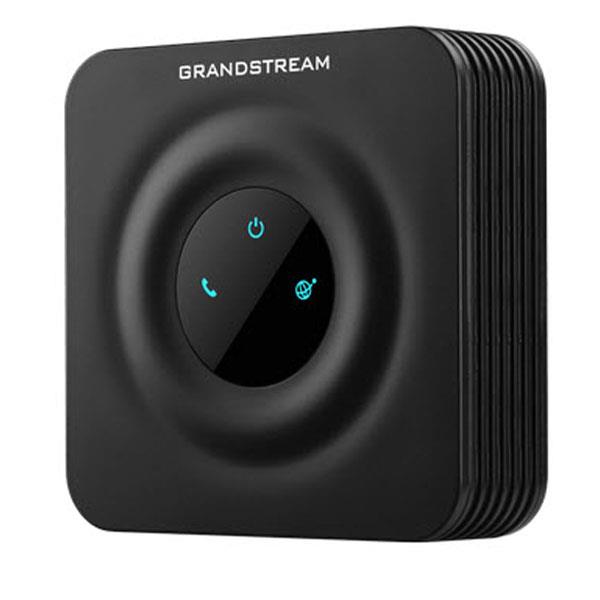

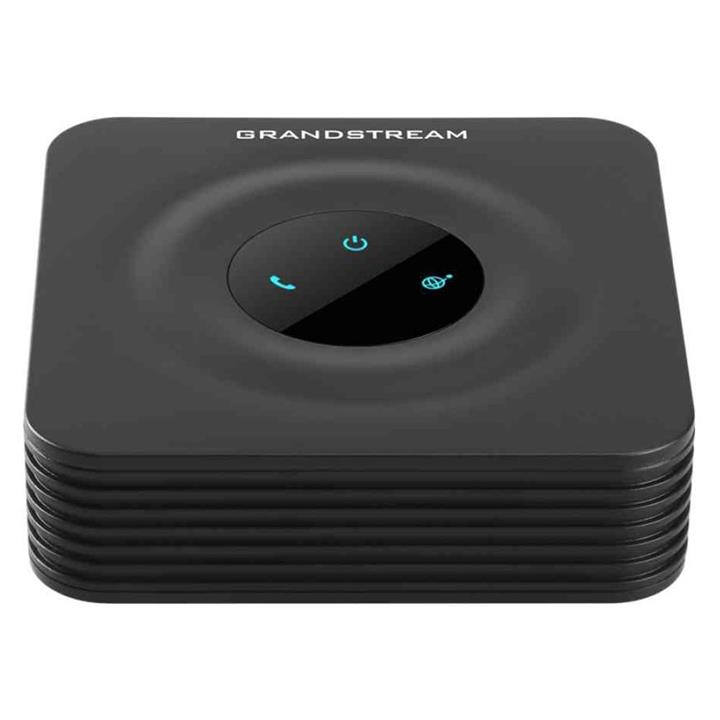

The HT801 is a single port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones. It also allows service providers to offer high quality IP service to their market. The HT801 is an ideal ATA for individual use as well as commercial IP voice deployments worldwide
کدک های قابل پشتیبانی
Voice Codecs G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, / OPUS, dynamic jitter buffer, advanced line echo cancellation /Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax
گواهینامه ها
FCC: Part15B CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, S003 K.21
مدیریت و تنظیم دستگاه
Provisioning and Control HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
منبع تغذیه
Universal Power Supply Input: 100-240VAC, 50-60Hz
وزن
گرنداستریم-Grandstream
