DTMF Methods
DTMF Methods In Audio, RFC2833, and SIP INFO
QoS
QoS Layer 3 QoS, Layer 2 QoS
Voice-over-Packet Capabilities
Voice and Fax Codecs G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32,
ابعاد (H x W x D)
Dimensions UCM6202/6204: 226mm L x 155mm W x 34.5mm H UCM6208: 440mm L x 185mm W x 44mm H
پروتکل ها و استانداردها
Network Protocols TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP/NAT Router Yes (supports router mode and switch mode)
پورتهای دستگاه
Network Interfaces Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009) Peripheral Ports USB, SD
تعداد پورت FXO
PSTN Line FXO Ports 2 ports (UCM6202); 4 ports (UCM6204); 8 ports (UCM6208)
تعداد پورت FXS
Analog Telephone FXS Ports 2 ports (both with lifeline capability in case of power outage)
تکنولوژی صفحه
LCD Display 128×32 graphic LCD with DOWN & OK button
قابلیت های کلیدی دستگاه
Designed to provide a centralized solution for the communication needs of businesses, the UCM6200 series IP PBX appliance combines enterprise-grade voice, video, data, and mobility features in an easy-to-manage solution. This IP PBX series allows businesses to unify multiple communication technologies, such as voice, video calling, video conferencing, video surveillance, data tools, mobility options and facility access management onto one common network that can be managed and/or accessed remotely. The secure and reliable UCM6200 series delivers enterprise-grade features without any licensing fees, costs-per-feature or recurring fees.
کدک های قابل پشتیبانی
+Video Codecs H.264, H.263, H263
مدل دستگاه

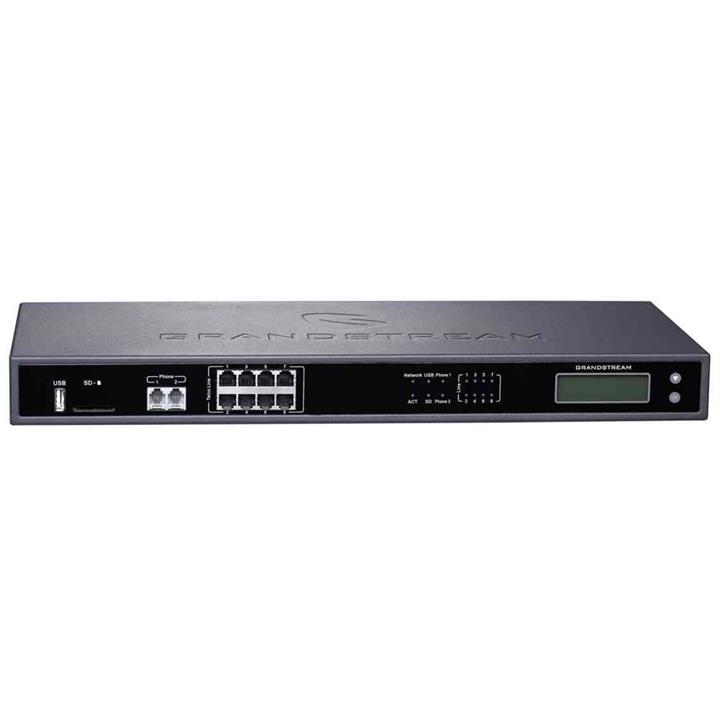

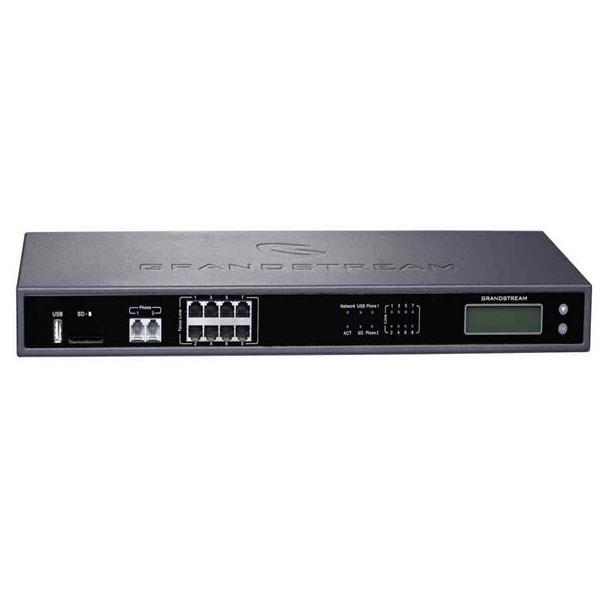

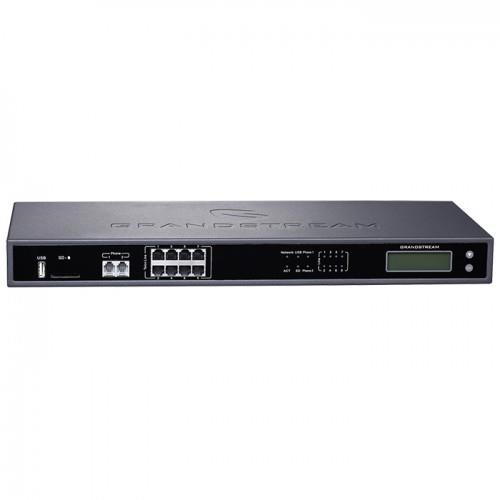

Grandstream UCM6208 IP-PBX
مدیریت و تنظیم دستگاه
TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via Zero-Config (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk
نوع قرارگیری روی میز ، دیوار یا رک
Mounting Wall mount & Desktop (UCM6202/6204); Rack mount & Desktop (UCM6208)
وزن
Weight UCM6202/6204: Unit weight 0.51kg, Package weight 0.94kg UCM6208: Unit weight 2.23kg, Package weight 3.09kg
