DTMF Methods
DTMF Method flexible DTMF transmission method, user interface of in-audio, RFC2833, and/or SIP info
Fax over IP
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-/IP Transport RTP/RTCP/IP Signaling SIP (RFC 3261)
QoS
QoS Diffserve, TOS, 802.1P/Q VLAN tagging
استاندارد های Caller ID
Caller ID Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID
پروتکل ها و استانداردها
DHCP Client/Server Yes, NAT Router or Switched Mode
تعداد پورت FXO

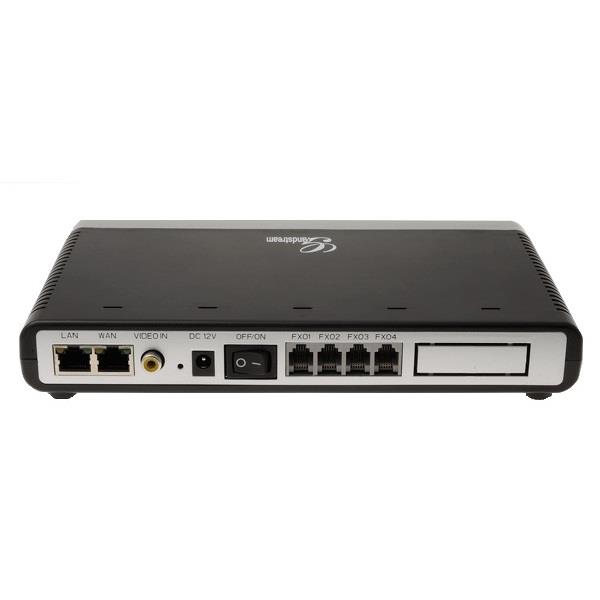

Telephone Interfaces GXW4104: 4RJ11 Network Interfaces :10M/100M/1000Mbps, dual RJ45 ports
چراغهای نشان دهنده وضعیت دستگاه

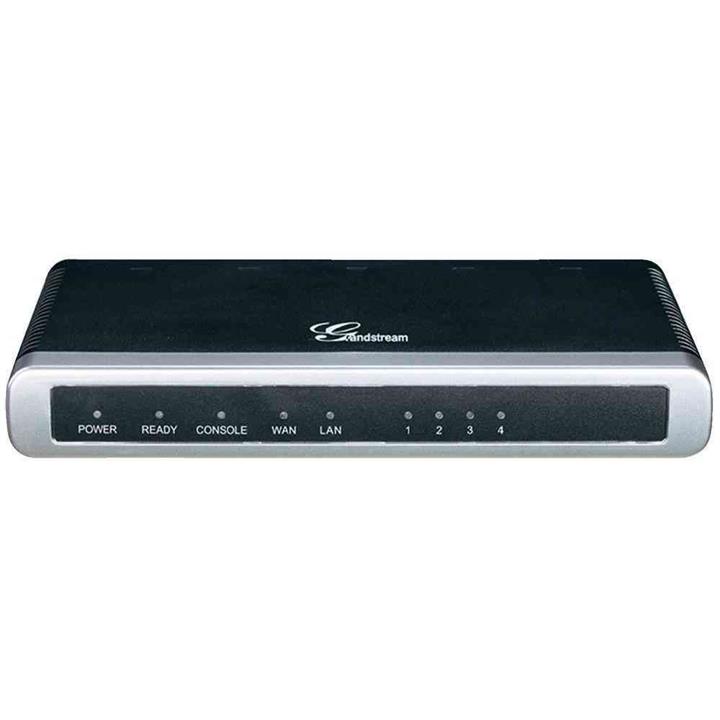

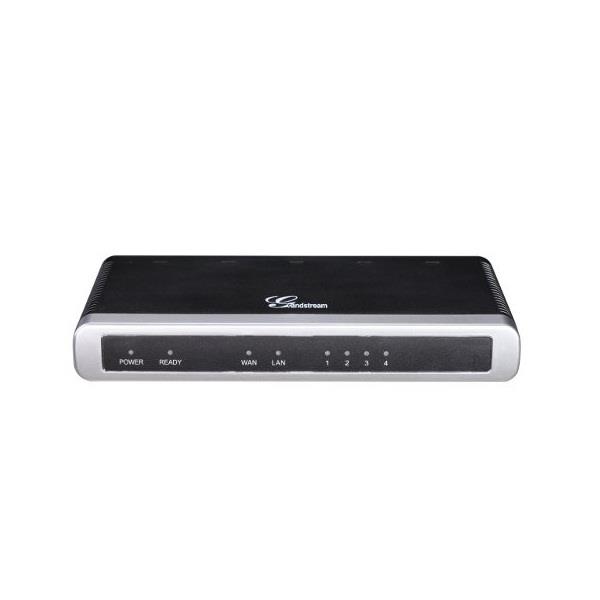

LED indicators Power, Network and Line LEDs
دما و رطوبت
Operational: 32-104°F or 0-40°C Storage: 14-140°F or -10-60°C Humidity: 10-90% Non-condensing
قابلیت های امنیتی
Media SRTP not available
کدک های قابل پشتیبانی
Voice-over-Packet Capabilities G.168 compiant Echo Cancelation, Dynamic Jitter Buffer, Moderm detection & auto-switch-G.711
منبع تغذیه
Power Output: 12VDC Input: 100-240VAC / 50-60Hz
نوع قرارگیری
Mounting Wall mount and desktop
