ابزار مدیریت
WANPIPEMON®, SNMP, system logs
توان مصرفی
PCI Express: 2.64 W (0.8 A @ 3.3 V) + 4.2 W (0.35 A @ 12 V) per FXS module
دمای عملکردی
Temperature range: 0 – 50°C
سیستم عامل های سازگار
Windows®2003, Windows®XP, Windows®Server 2008, Windows®Vista, Windows®7
Linux (all versions, releases and distributions from 1.0 up)
قابلیت پشتیبانی از مرک تلفن های
the Asterisk®, FreeSWITCH®, Yate™, CallWeaver™, PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications
قابلیت های فکس
With Sangoma, there is no need for a separate analog line to run your fax machine
Using T1/E1 passthrough with Sangoma analog cards, there are no clock slips, buffer overruns, or transmit underruns that cause missed lines, blank sheets, and missed pages when faxing
Sangoma A200 and A400 cards synchronize perfectly with digital T1/E1 cards and the PSTN atomic clock for error-free fax and modem passthrough and superior voice quality over T1 and E1 lines
گارانتی
یکساله هزارسو
گواهینامه ها
FCC Part 15 Class A, FCC Part 68, and EN 55022 Class A, JATE
Technical certifications in Russia and Malaysia
ISO 9002
معماری و طراحی کارت

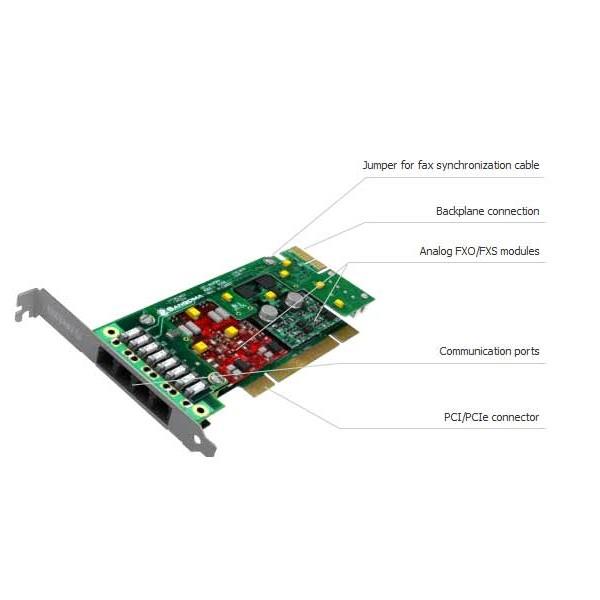

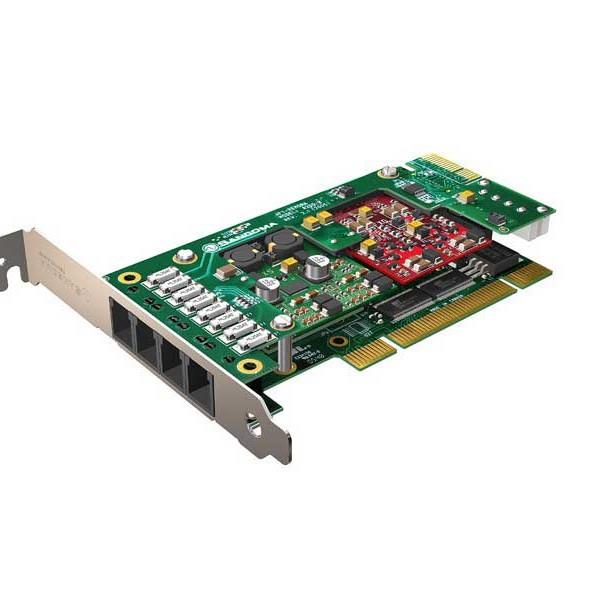

The A200 consists of a Remora™ daughtercard mounted on the AFT PCI card. The Remora card has two sockets each of which can accept a FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines, respectively.
Up to five additional Remora™ daughtercards can be mounted in empty slot positions beside the A200 assembly, connected to the A200 by a backplane bus connector.
نوع اسلات اتصال به سرور
PCI Express compliant, compatible with all commercially available motherboards, proper sharing of PCI interrupts
Single synchronous PCI Express interface for all 24 FXO/FXS ports
32 bit bus master DMA data exchanges across PCIe interface at 132Mbytes/sec for minimum host processor intervention
Autosense compatibility with 5 V and 3.3 V PCIe busses
نوع دستگاه
FXS/FXO Telephony Analog Card
نوع کابل و اتصال کانتکتور
The A200 and Remora™ cards incorporate 4-pin RJ11/4 narrow jacks, such as those used in telephone handsets
Each Sangoma A200 card is shipped with four 2 m cables terminating in a narrow RJ11/4 plug at one end and a telephone-standard RJ11/6 plug at the other
To hardwire the A200 system, you can purchase a kit of 12 RJ11/4 plugs and a crimping tool, sold separately
وزن
قابل افزایش ۲ تا ۲۴ پورت آنالوگ FXO یا FXS
