Brand
ایسوس – Asus
Core Logic
Intel® C242 Chipset
Memory
Capacity : Maximum up to 128GB UDIMM , Memory Size : 32GB , 16GB , 8GB , 4GB UDIMM , Memory Type : 2666/2400 UDIMM non ECC and with ECC , Total Slots : 4 (2-channel)
Processor
1 x Socket LGA1151 Intel® Xeon® processor E-2100 family Intel® Xeon® processor E-2200 family The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
Storage
(For Linux/Windows) (Support Software RAID 0 , 1 , 5 , 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) , SATA Controller : Intel® C242 Chipset 6 x SATA3 6Gb/s ports *1 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *2 Intel® Rapid Storage Technology Enterprise(RSTe)
اسلات توسعه
1xPCI Express x16 (Gen 3.x) slots , 1xPCI Express x8 (Gen 3.x) slots
پورت های پنل پشت
1xExternal Serial Port , 1xRJ-45 ports (One for ASMB9-iKVM)(Optional) , 1xVGA port , 2xUSB 3.1 ports , 2xUSB3.0ports , 4xRJ-45
پورت های پنل جلو
1xVGA port , 2xUSB 3.0 ports
تعداد پردازنده
1xSocket LGA1151
تعداد هسته
1
فرکانس پردازنده
DDR4 2666/2400 UDIMM non ECC and with ECC
کنترلر ذخیره ساز
Intel C242
مدل

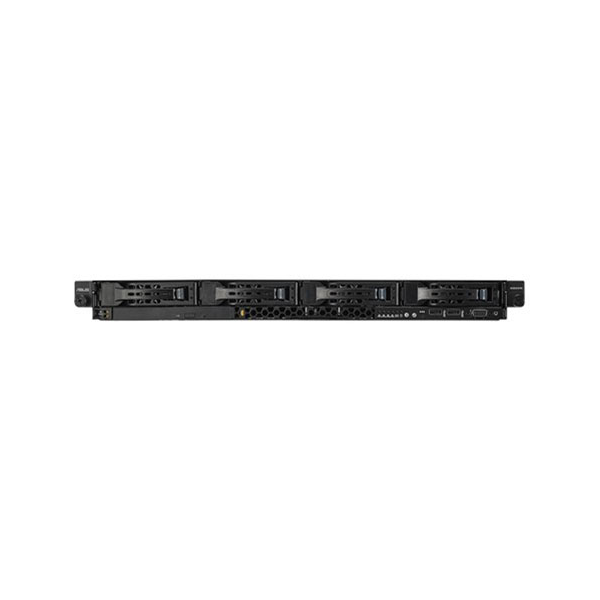

RS300-E10-RS4
مدل پردازنده گرافیکی
Aspeed AST2500 with 32MB VRAM
منبع تغذیه
1Single 400W 80 PLUS Gold Power Supply
نوع شاسی
1U Rackmount
