Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your bui

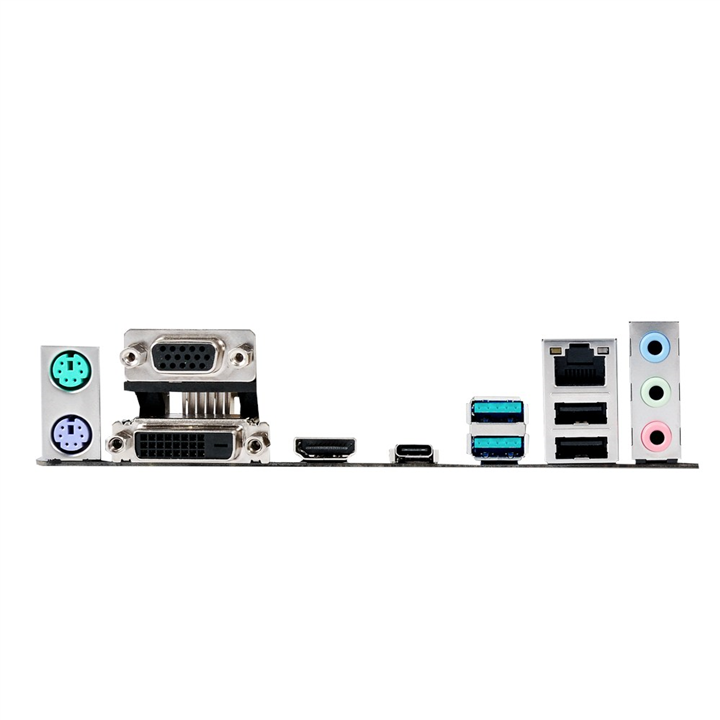

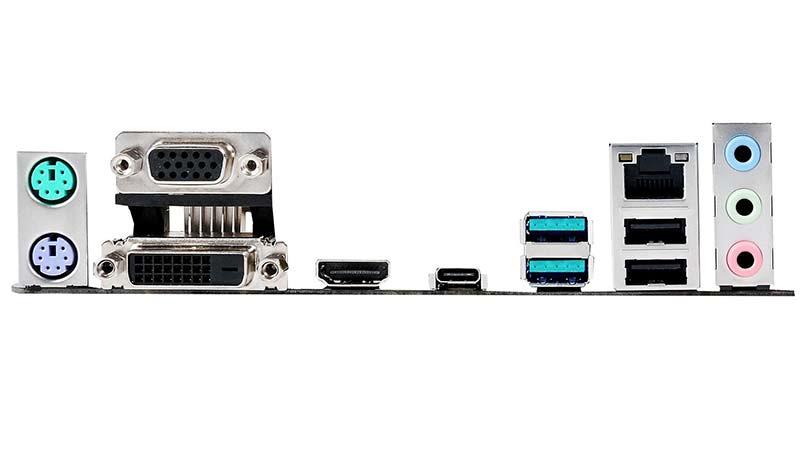

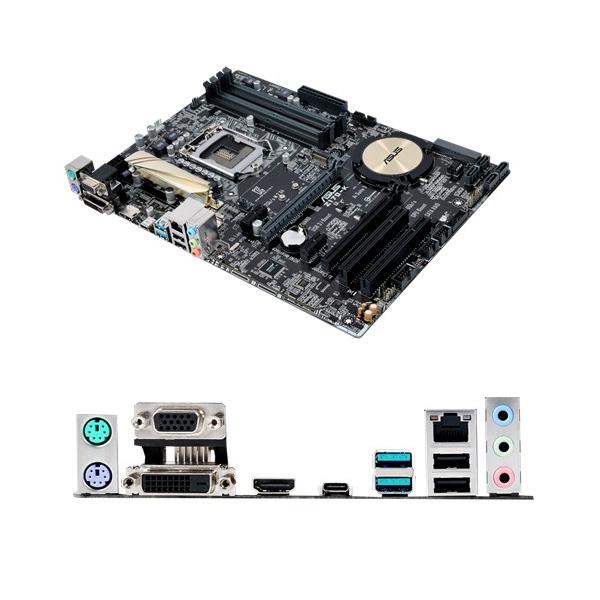

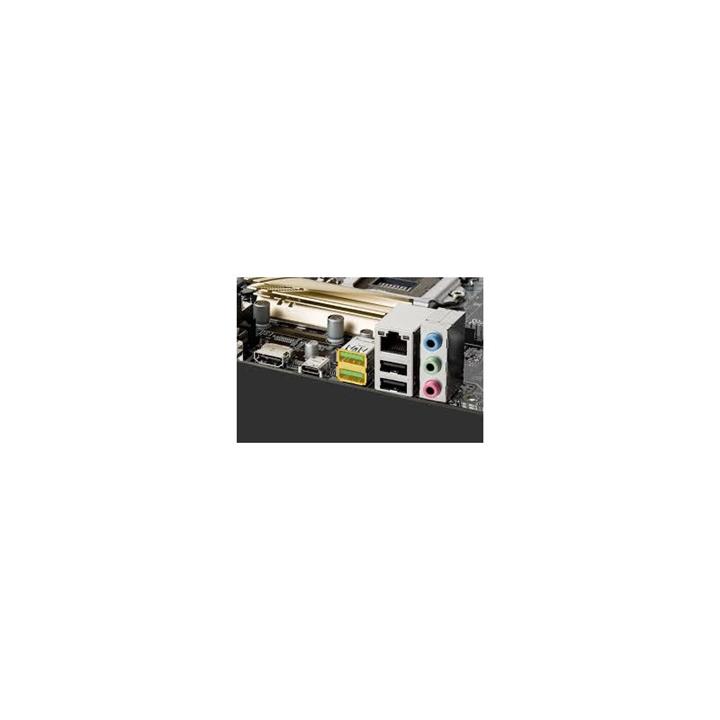

Back I/O Ports
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 5Gb
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and
CPU Support
Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 1 x PCIe 3.0/2.0 x16 (max at x4 mode, black) 2 x PCIe 3.0/2.0 x1 2 x PCI
Form Factor
ATX Form Factor 12 inch x 8.8 inch
Graphic
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Graphics
Integrated Graphics Processor- Intel® HD Graphics support
I/O Port
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector: gray, Compatible with 2 x SATA

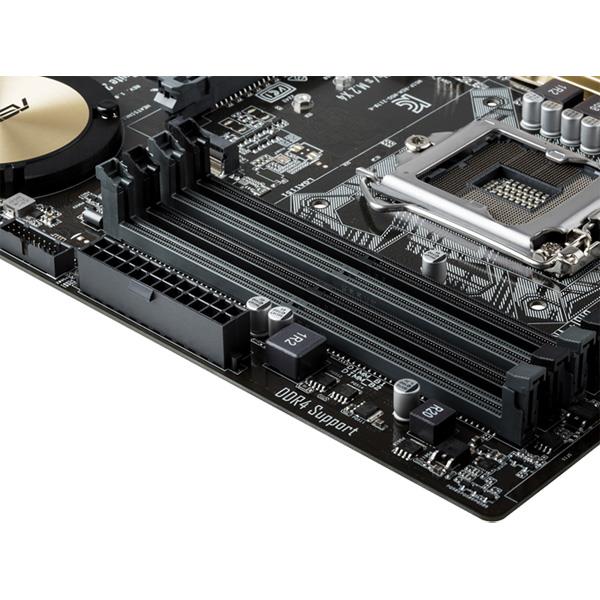

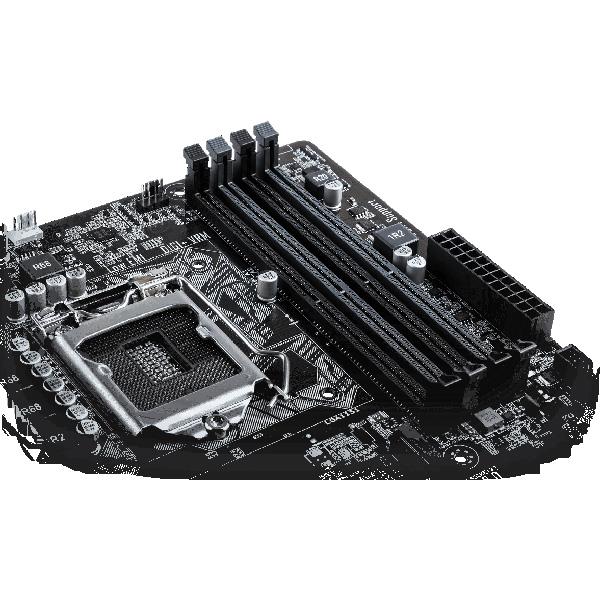

Memory
4xDIMM,Max.64GB,DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.) /2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture

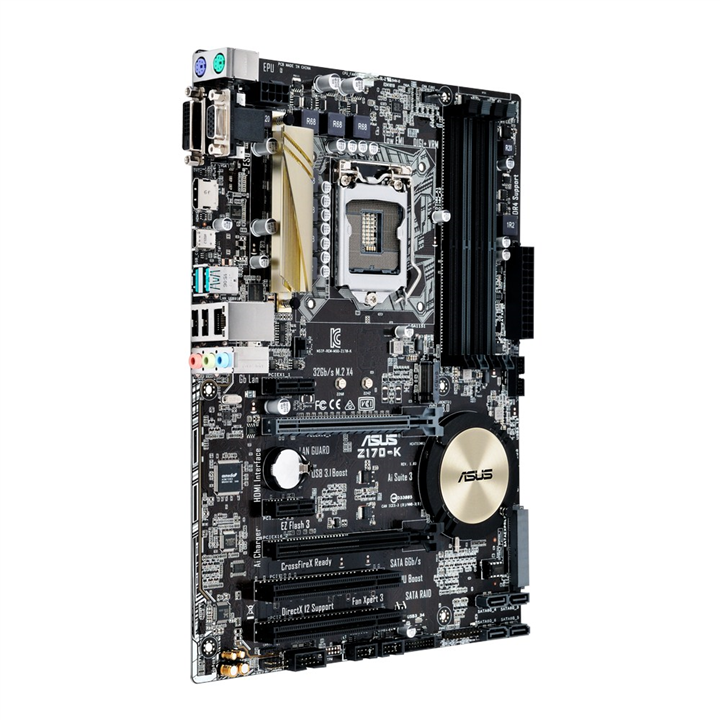

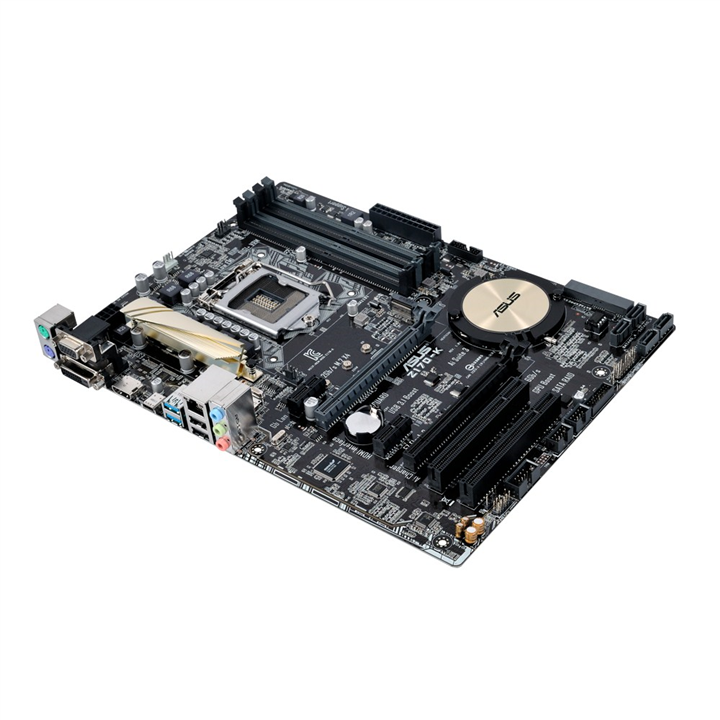

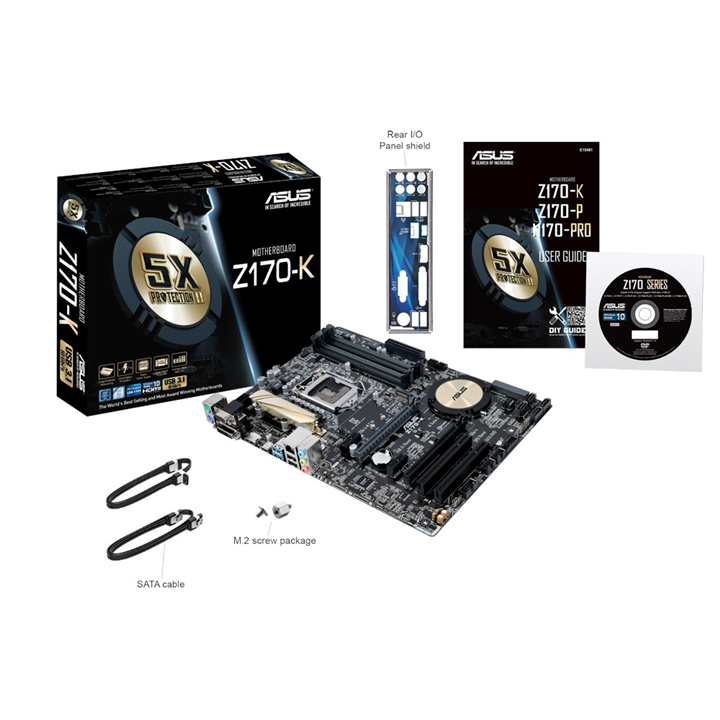

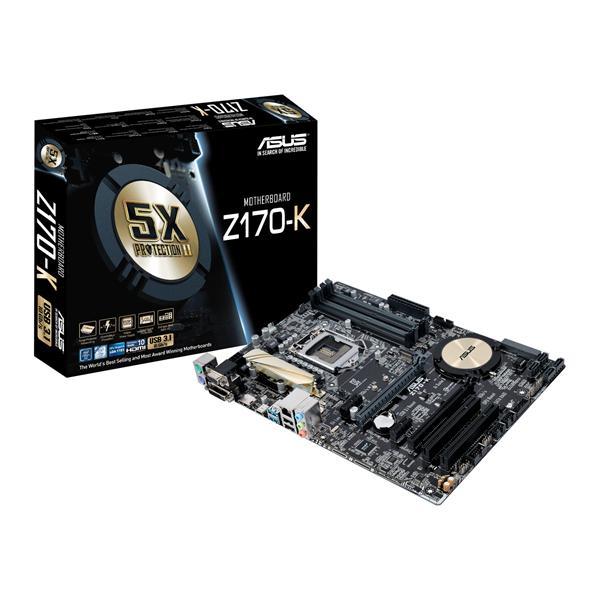

Motherboard

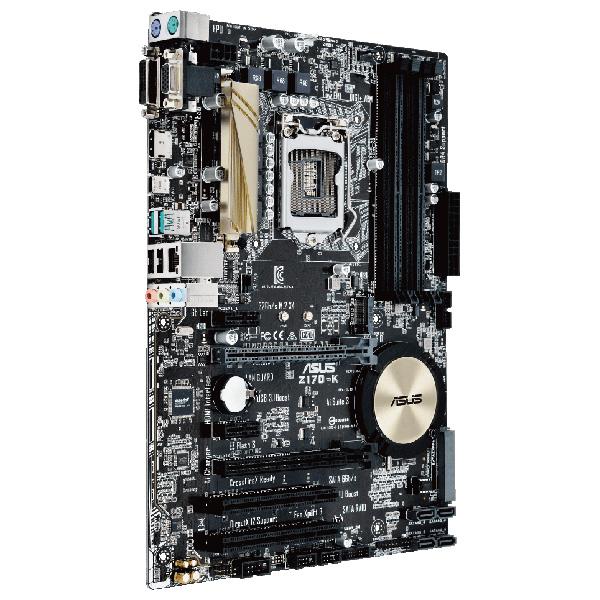

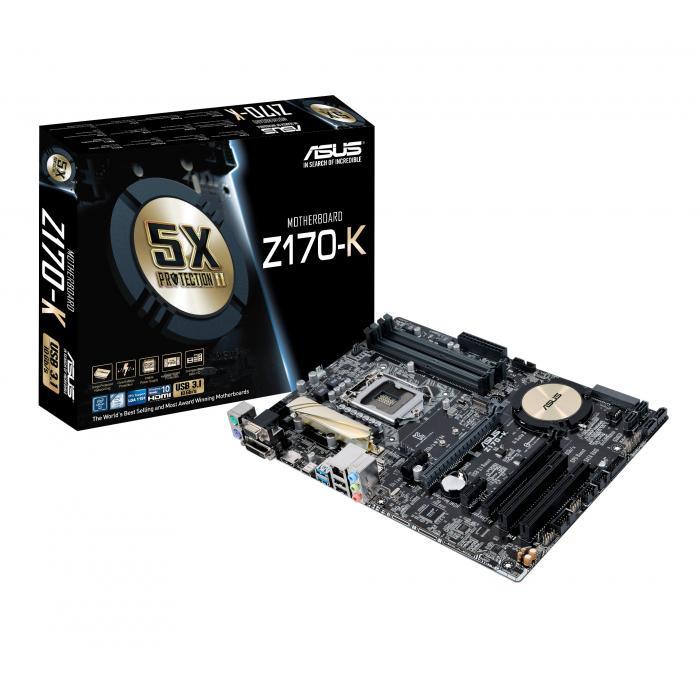

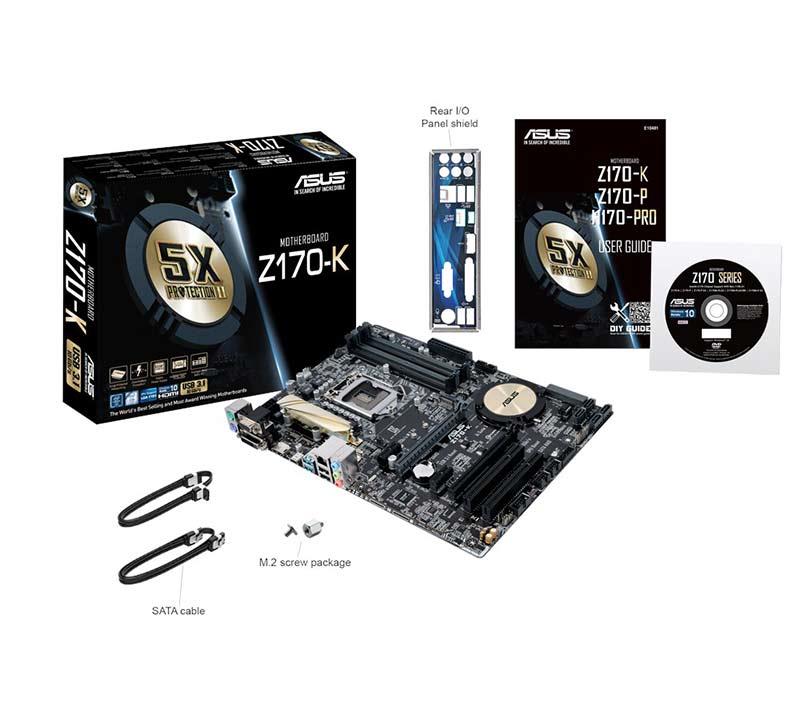

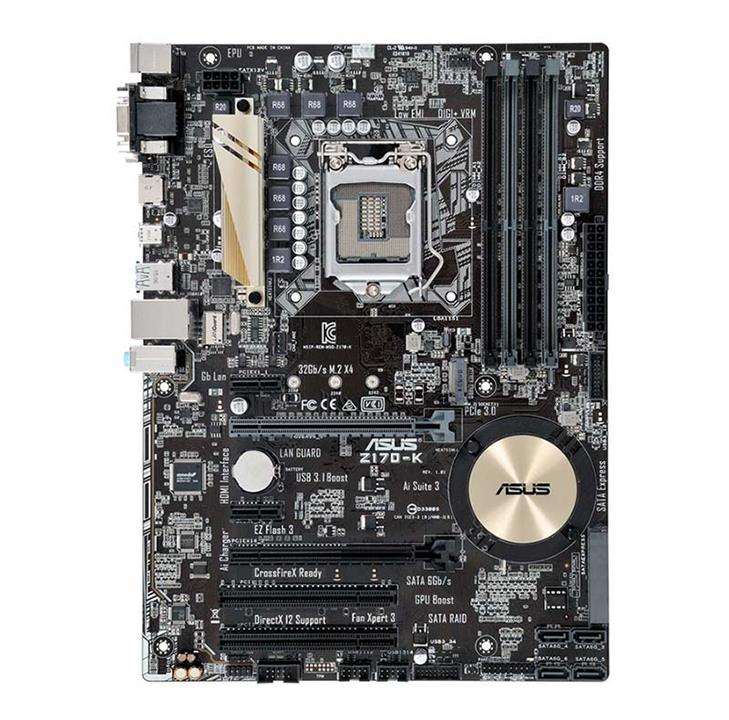

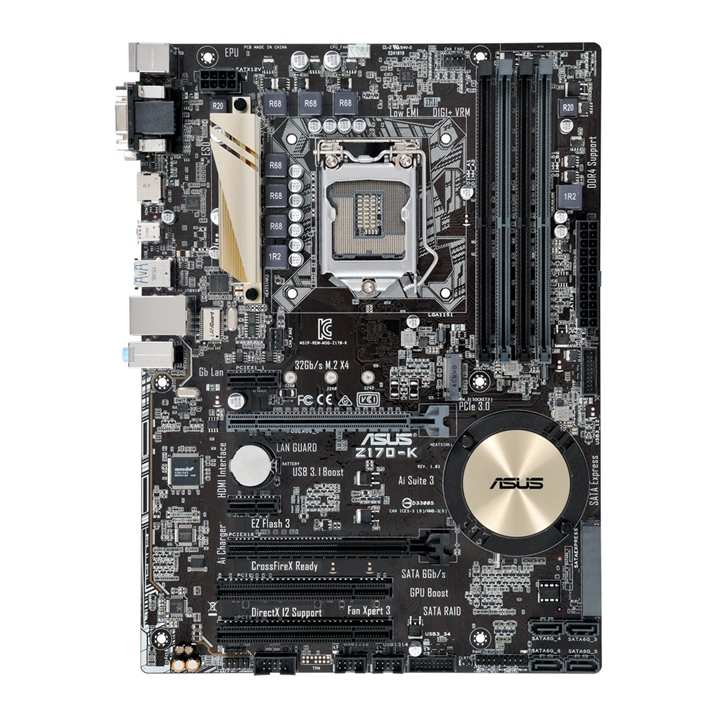

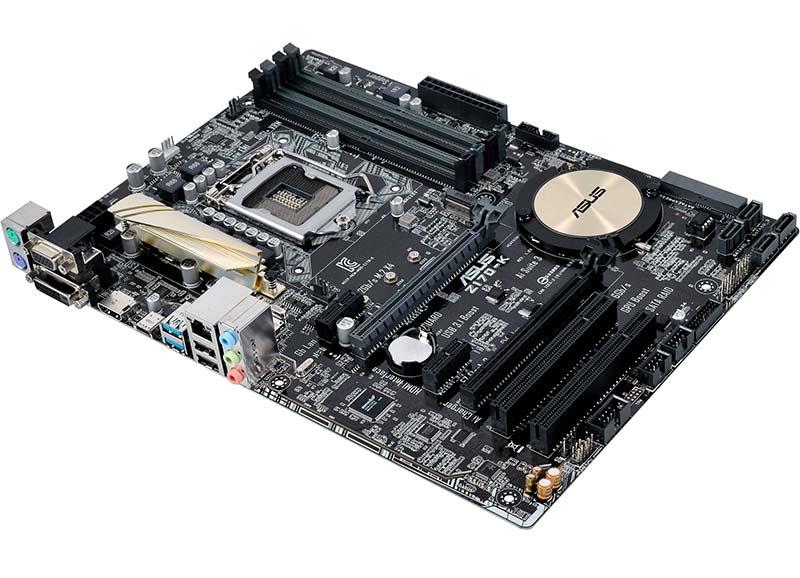

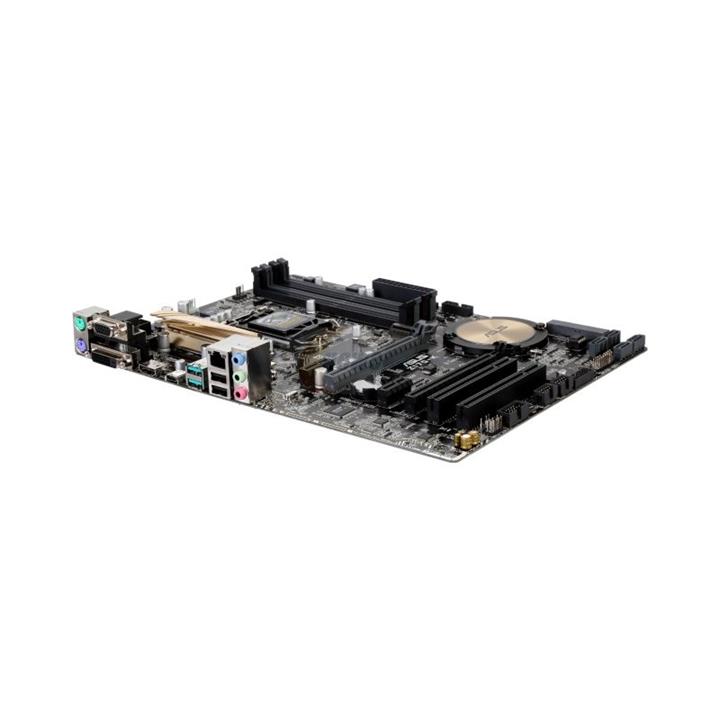

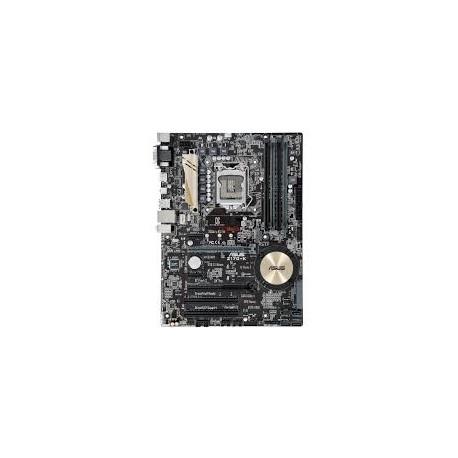

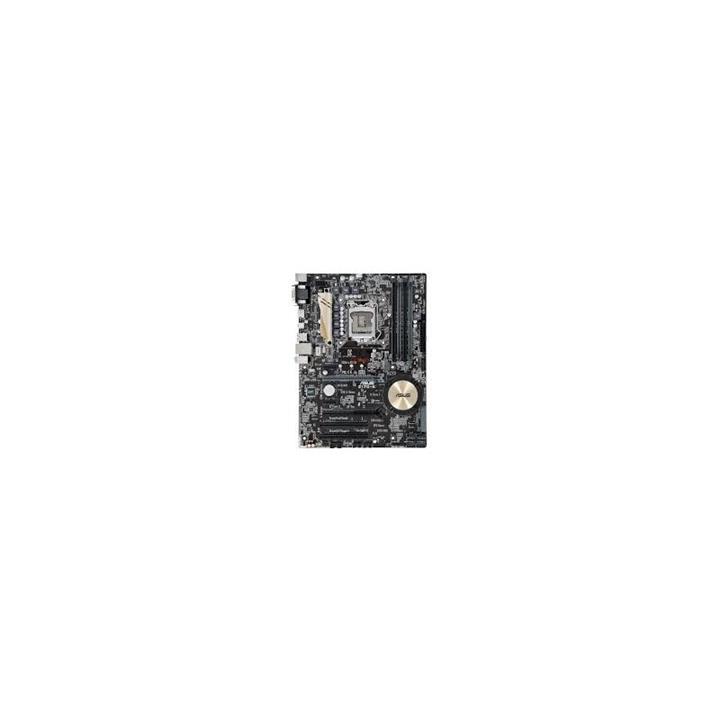

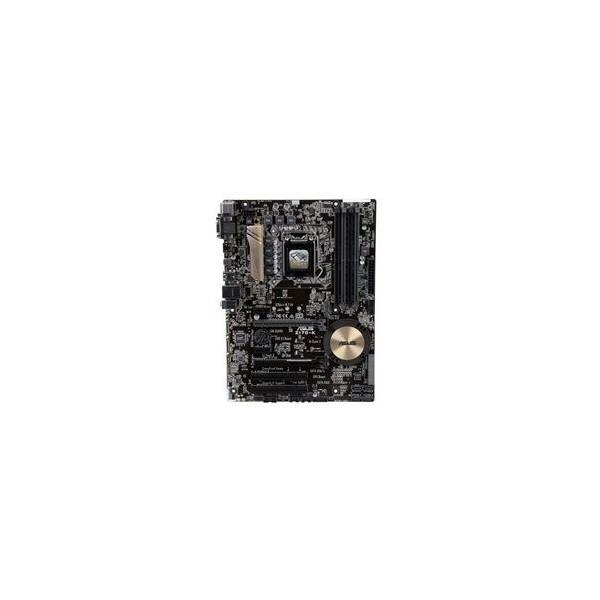

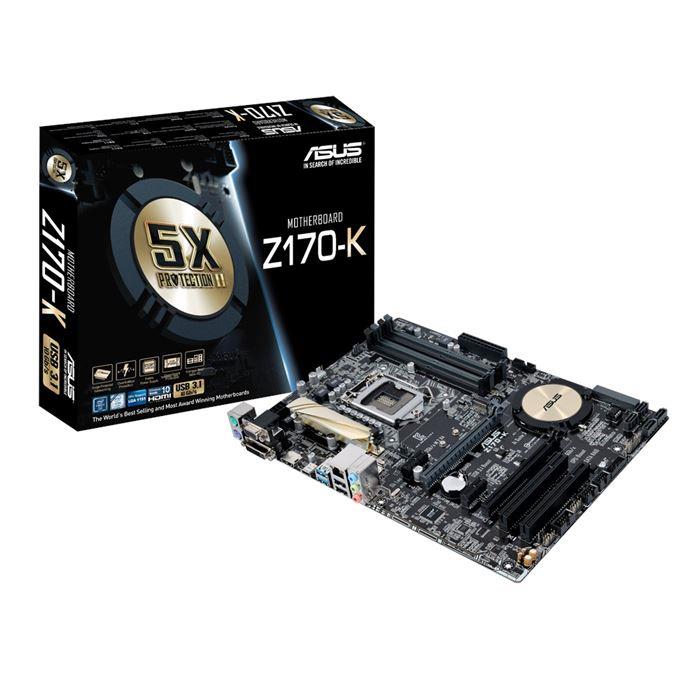

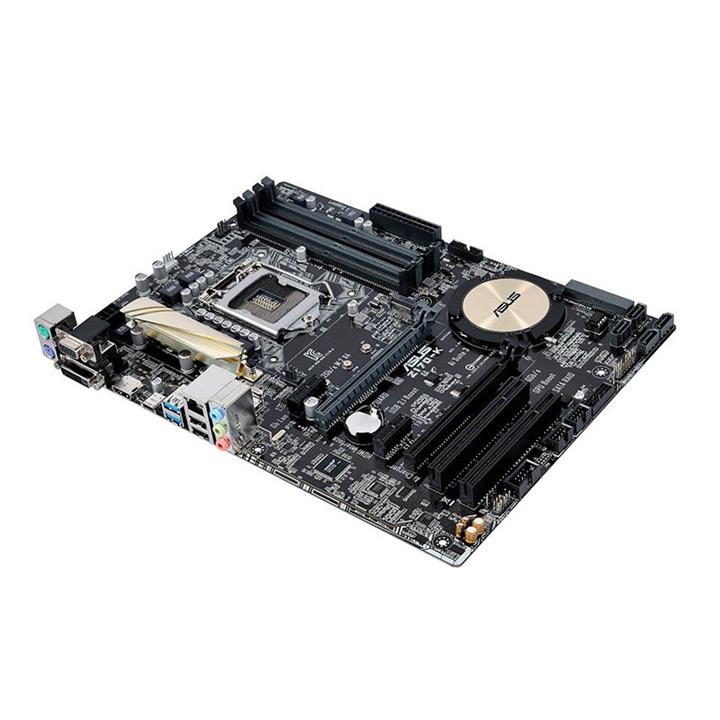

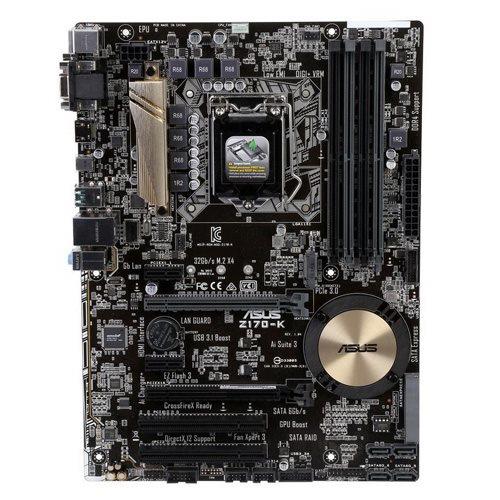

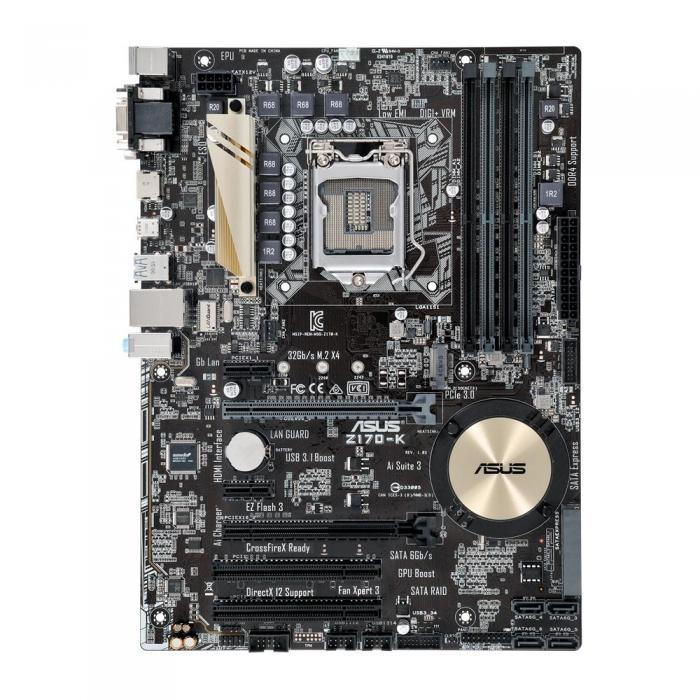

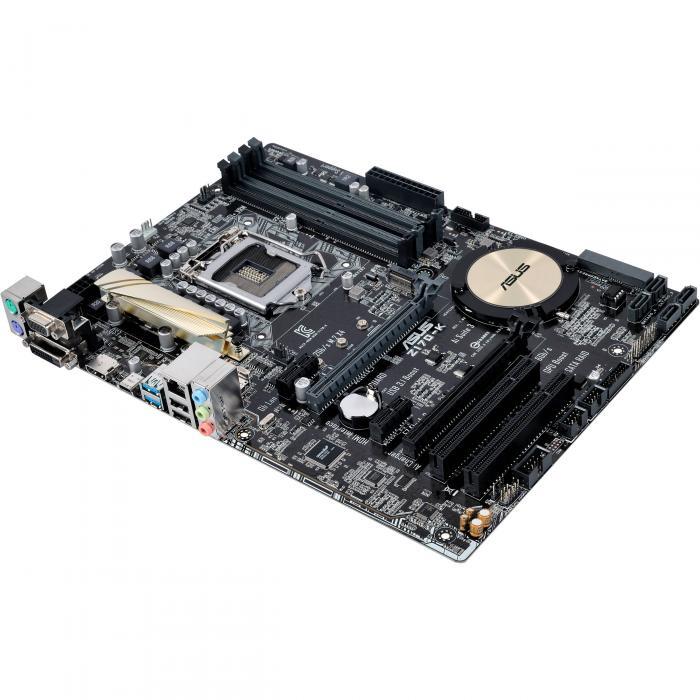

ASUS Z170-K
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX™ Technology
socket
Intel® Socket 1151
Storage
Intel® Z170 chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x SAT
USB
ASMedia® USB 3.1 controller : 2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, teal blue) Intel® Z170 chipset : 1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Reversi
پردازشگر اصلی ( CPU )
Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 The Intel®
پردازنده
Intel® Z170
درگاه LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
