Approvals
FCC Part 15.407 and Part 90Y, IC RSS210 and RSS111, CE, ETSI 301 893/302 502
Bandwidth
20/40/80 MHz channels; Tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
Brand
MIMOSA
Connector Type

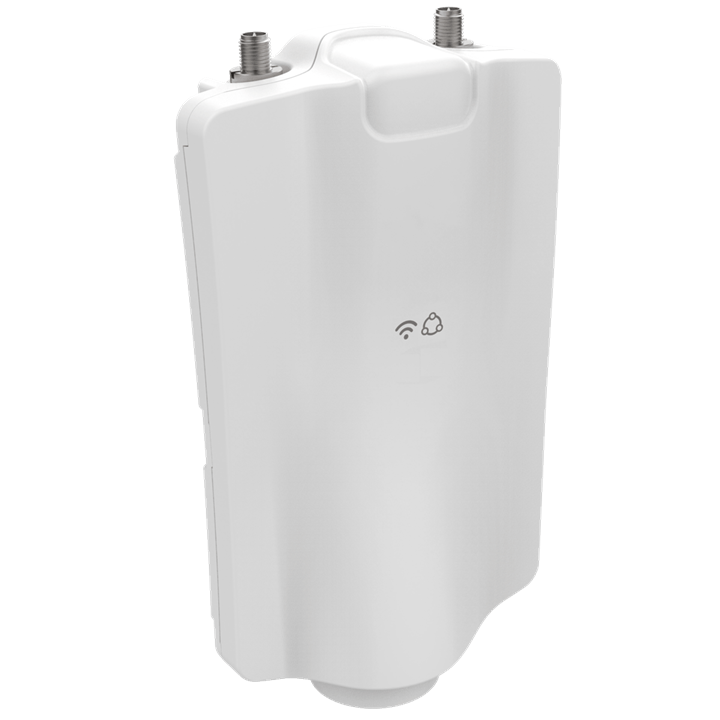

(2) RP-SMA (female)
Dimensions
Depth: 44 mm (1.73”), Height: 188.4 mm (7.42” including gland), Width: 75 mm (2.95”)
Enclosure Characteristics
Outdoor UV-stabilized engineered polymer with integrated mounting back
Frequency Range
4900–6400 MHz ROW (PN: 100-00107-1) Restricted by country of operation, 5150–5850 MHz FCC/ETSI/CA (PN: 100-00107)
Gigabit Ethernet
10/100/1000-BASE-T
GPS Location
GNSS-1 (GPS GLONASS)
Management Services
Cloud monitoring and provisioning; SNMPv2c/v3; Syslog; HTTPS; HTML 5-based Web GUI; mDNS support; IPv4 and IPv6
Max Output Power
27 dBm
Max Power Consumption
: 9–12.9 W
Max Throughput
Up to 700 Mbps (IP)
MIMO 5 GHz
2×2:2 MIMO OFDM up to MCS9 (256-QAM 5/6)
Operating Altitude
4,420 m (14,500’) maximum
OPERATING HUMIDITY
5 to 100% condensing
OPERATING TEMPERATURE
-40°C to 55°C (-40°F to 131°F)
Outdoor Ingress Protection Rating
IP67
PoE Power Supply
Passive POE compliant, 24–56 VDC (PoE injector not included)
QoS
Supports 3 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user-configurable precedence
Safety
EN 62638-1
Security
WPA2; AES; RADIUS; 802.1x
Sensitivity ( MCS 0 )
-87 dBm @ 80 MHz, -90 dBm @ 40 MHz, -93 dBm @ 20 MHz
Shock Vibration
ETS 300-019-2-4 class 4M5
Smart Spectrum Management
Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use
System Lightning ESD Protection
: 6 kV
System Power Method
Passive PoE (24-56 VDC)
Weight
0.30 kg (0.70 lbs)
Wireless Protocols
WiFi Interop, Spectrum Reuse Synchronization (SRS/GPS sync)
