Firewall/ امنیت
- Static MAC addresses: Up to 32 entries- Traffic segmentation- Broadcast/Multicast/Unknown Unicast Storm Control- Port security
استاندارد ها
- IEEE 802.3 for Ethernet- IEEE 802.3u for Fast Ethernet- IEEE 802.3ab for Gigabit Ethernet- Auto-negotiation- Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)- Auto MDI/MDIX- IEEE 802.3x Flow Control supports full-duplex mode- IEEE 802.3az compliant
برند
D-Link
تعداد پورت ها
8
توضیحات نشانگر LED
- نمایش وضعیت link/speed/activity برای پورتها- PoE PD
سایر مشخصات
- D-Link Green- Flow Control: 802.3x Flow Control, HOL Blocking Prevention- Jumbo frames up to 9216 bytes- IGMP Snooping: IGMP v1/v2 Snooping, Supports 128 Groups- Static Trunk: 2 groups- Loopback Detection- Cable diagnostics- Statistics: Tx Ok, Tx Error, Rx Ok, Rx Error- Port-based VLAN- IEEE 802.1Q tagged VLAN- Surveillance VLAN- Voice VLAN- Management VLAN- VLAN Group- Supports 32 static VLAN groups- Max. 4094 VIDs- Asymmetric VLAN- MAC Address Table Size : 8K entries- Packet Buffer : 4.1 Mbits- Flash Memory : 32 Mbytes
کیفیت خدمات/Qos
- IEEE 802.1p Quality of Service- Supports 4 queues per port- Queue handling: Strict, Weighted Round Robin- Bandwidth control: Port-based Ingress/Egress, min granularity 16 Kb/s- DSCP
مدل

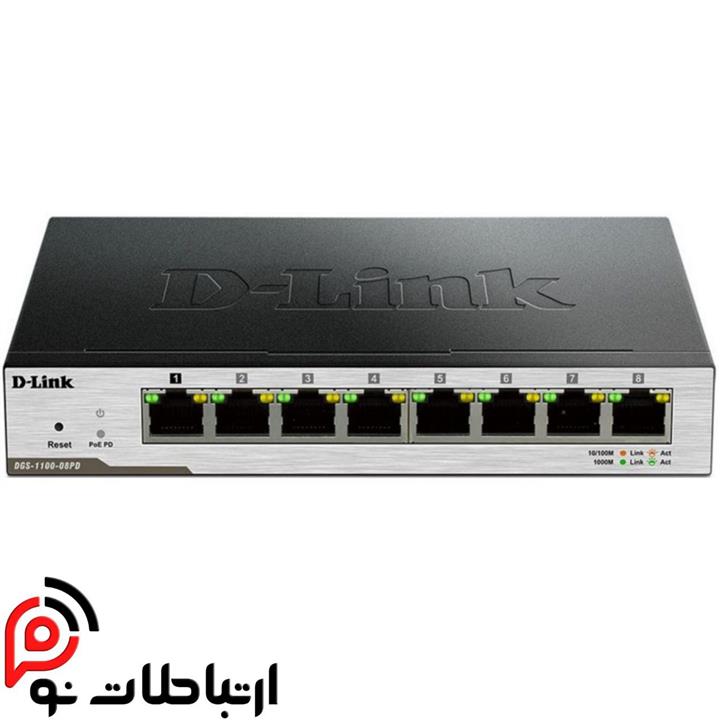

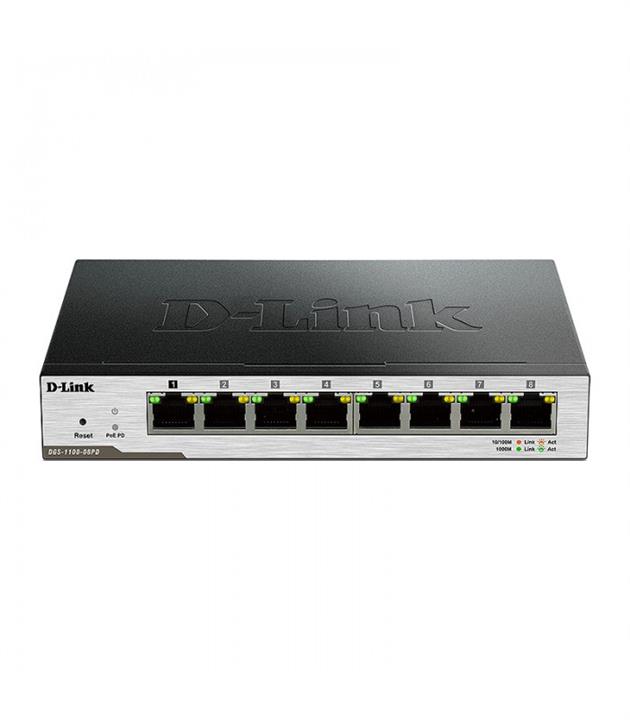

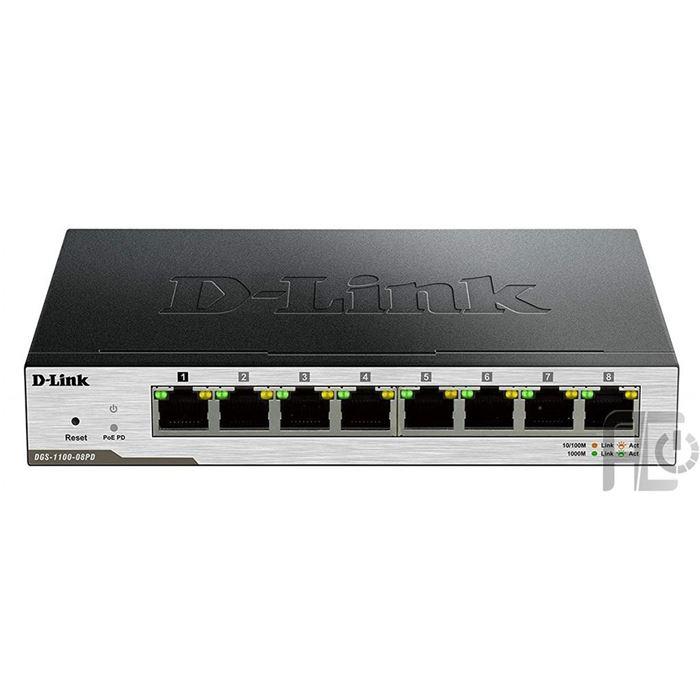

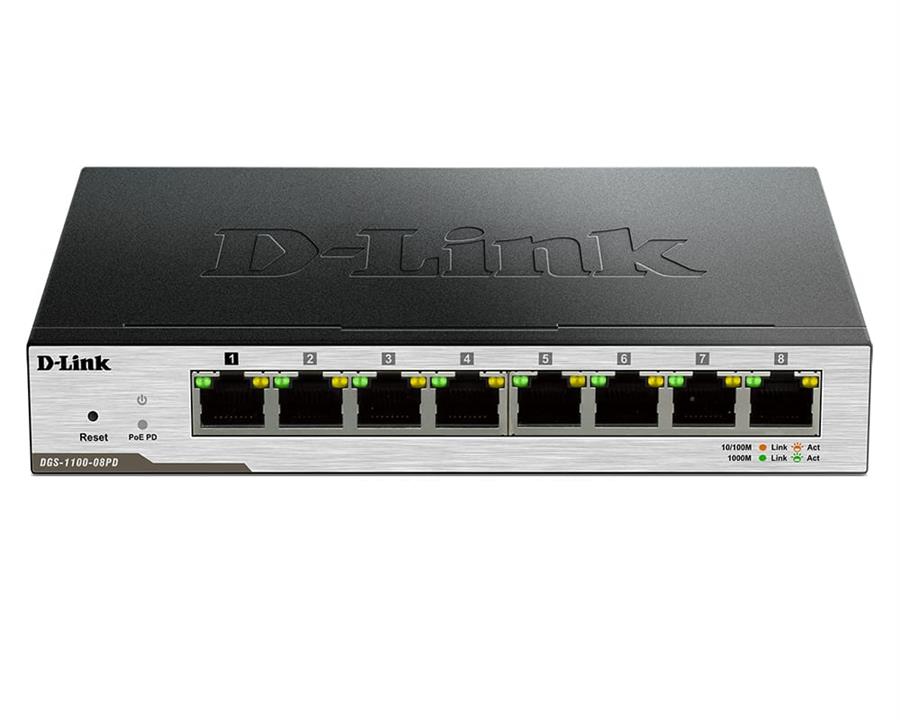

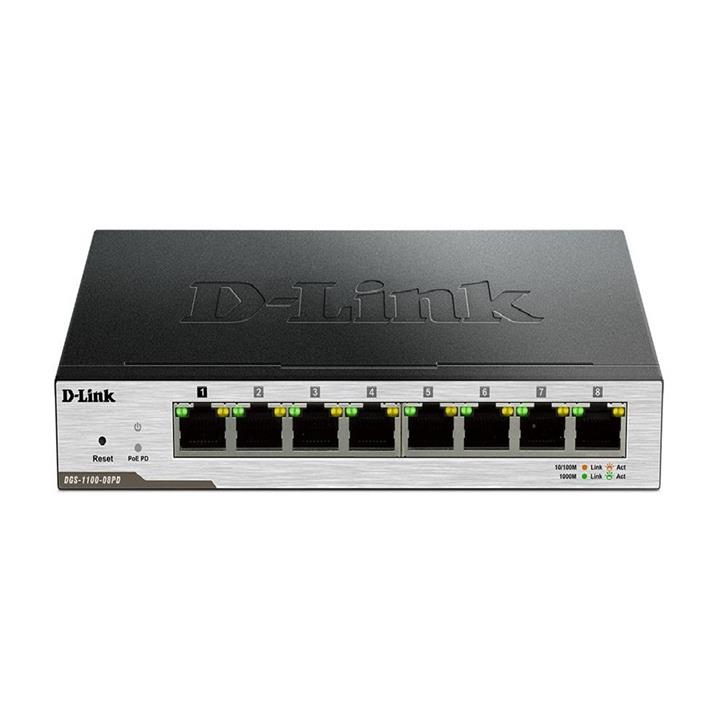

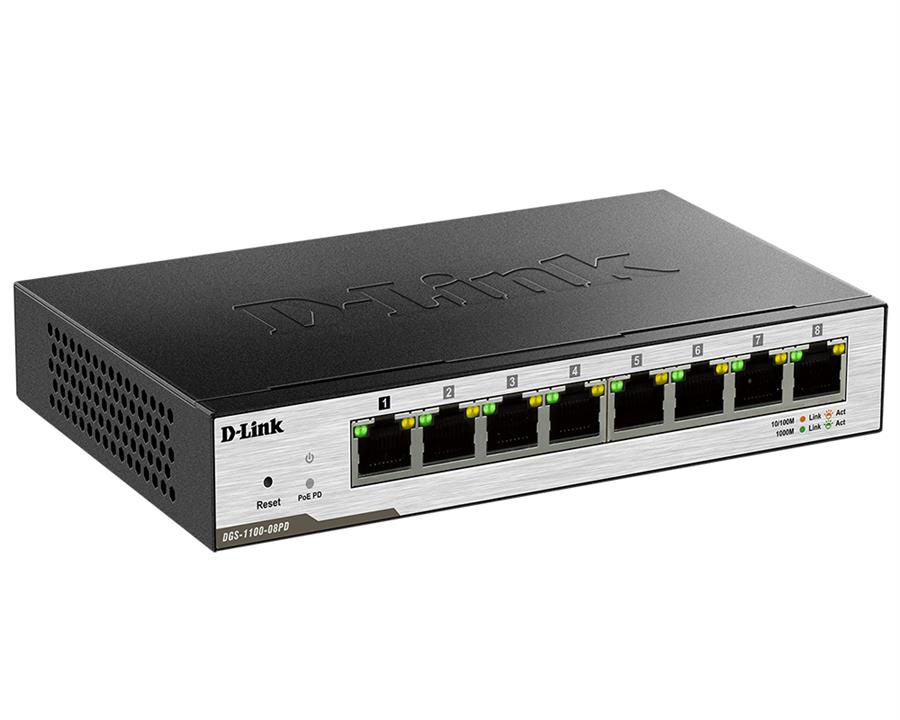

DGS-1100-08PD
مدیریت شبکه
- Web-based GUI Supports IPv4- D-Link Network Assistant
وزن
450 گرم
